| Models |

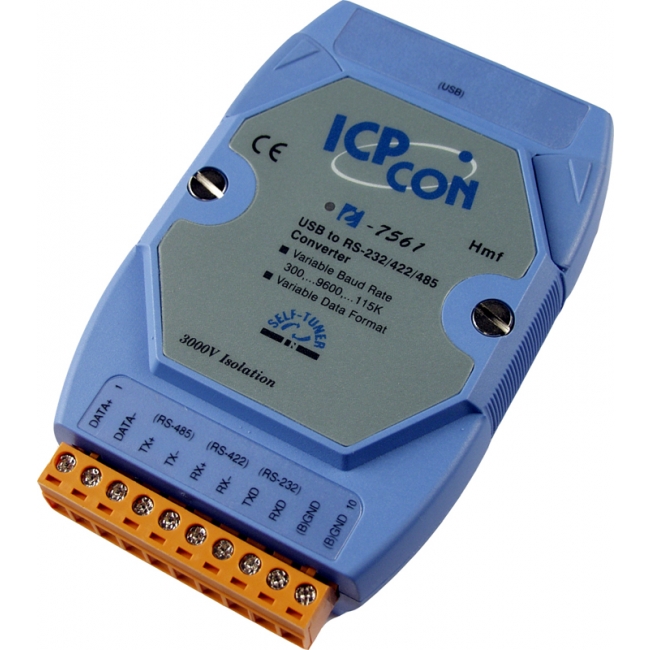

I-7561 |
I-7561U |
| Interface |
| USB |
Fully Compliant with the USB 1.1/2.0/3.0 |
| Serial Interface |
RS-232 |
The RS-232, RS-422 and RS-485 cannot be used simultaneously
• TxD, RxD, GND
• TxD+, TxD-, RxD+, RxD-
• Data+, Data- |
| RS-422 |
| RS-485 |
| RS-422/485 Transmission Distance |
Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
(Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change) |
| Self-Tuner Asic Inside (RS-485) |
Yes |
| Speed |
300 ~ 115200 bps |
300 ~ 921.6 kbps |
| Connection |
RS-232/422/485 |
Removable 10-Pin Terminal Block |
| USB |
Type B |
| Cable Included |
CA-USB18 (1.8 m Cable) x 1 |
| LED Indicators |
| Power |
Yes |
| Power |
| Input Voltage Range |
+5 VDC from USB |
| Power Consumption |
0.5 W |
| Environment |
| Casing |
Plastic |
| Flammability |
Fire-Retardant Materials (UL94-V0 Level) |
| Dimensions (W x H x D) |
72 mm x 115 mm x 35 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +75 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
