特色及優點
- 10/100BaseT(X) (RJ45連接器)，100BaseFX (多模，SC/ST連接器)
- 支援IEEE802.3/802.3u/802.3x
- 廣播風暴防護 (Broadcast storm protection)
- DIN-Rail安裝能力
- -10 至 60°C 工作溫度範圍
簡介

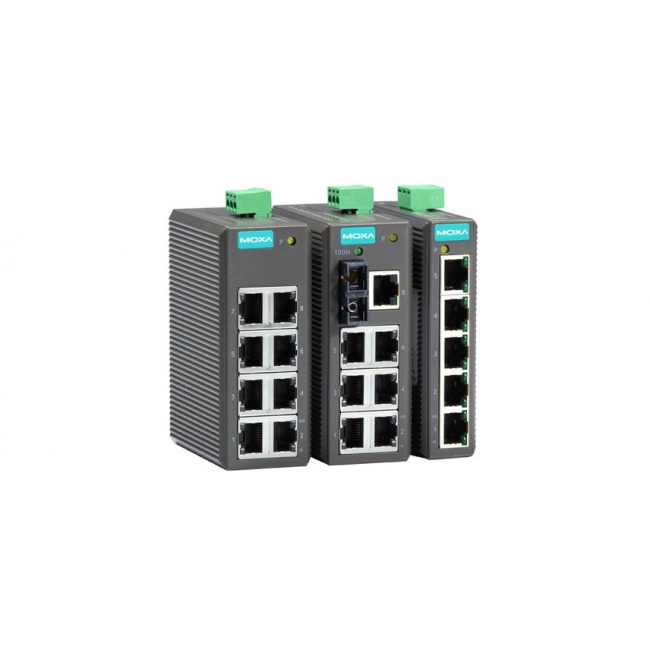

EDS-205/208系列是入門級的5和8埠工業級乙太網路交換器，支援IEEE 802.3/802.3u/802.3x 10/100M全/半雙工MDI/MDIX自動感應RJ45埠。EDS-205/208交換器經測試可於-10至60°C的溫度範圍下運作，滿足嚴苛的工業級應用環境條件。此系列交換器可輕易安裝於DIN-Rail或是配接箱內。其DIN-Rail安裝能力、寬溫作業和具備LED指示燈的IP30機殼保護，使這款隨插即用的EDS-205/208交換器不僅簡單易用又具可靠性。詳細規格
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| • Switch Properties | |
| MAC Table Size | 1 K |
| Packet Buffer Size | 512 kbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports | 100BaseFX ports (SC/ST connector, multi-mode) |
| • Optical Fiber | |
| Table | |
| • Power Requirements | |
| Input Voltage | EDS-205: 24 VDC (12 to 48 VDC), single input EDS-208 Series: 24 VDC (12 to 45 VDC), single input |
| Input Current | EDS-205: 0.11 A @ 24 V EDS-208: 0.12 A @ 24 V EDS-208-M: 0.2 A @ 24 V |
| Overload Current Protection | 1.1 A |
| Connection | 1 removable 3-contact terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Plastic |
| IP Rating | IP30 protection |
| Dimensions | EDS-205: 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in) EDS-208 Series: 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in) |
| Weight | EDS-205: 135 g (0.30 lb) EDS-208 Series: 170 g (0.38 lb) |
| Installation | DIN-rail mounting |
| • Environmental Limits | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | EDS-205: UL 508, EN 60950-1 EDS-208 Series: UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-205: 3,915,945 hrs EDS-208: 401,624 hrs EDS-208-M-SC/ST: 368,353 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
可選型號
| Model No. | Description | |
|---|---|---|
| EDS-205 | Entry-level unmanaged Ethernet switch with 5 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature | |
| EDS-208 | Entry-level unmanaged Ethernet switch with 8 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature | |
| EDS-208-M-SC | Entry-level unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, plastic housing, -10 to 60°C operating temperature | |
| EDS-208-M-ST | Entry-level unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector, plastic housing, -10 to 60°C operating temperature |
配 件
DIN Rail Power Supplies
| 產品型號 | 描述 | |
|---|---|---|
| DR-4524 | 45W/2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 50°C operating temperature | |
| DR-75-24 | 75W/3.2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 60°C operating temperature | |
| DR-120-24 | 120W/5A DIN-rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch, or 248-370 VDC , -10 to 60°C operating temperature |
