| Models |

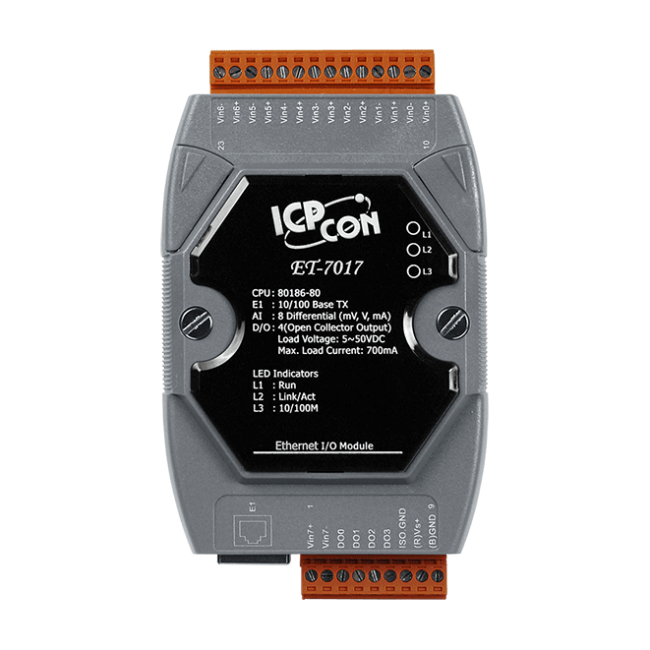

ET-7017 |
PET-7017 |
ET-7217 |
PET-7217 |
| Software |
| Built-In Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
| Ethernet Port |
1 x RJ-45, 10/100 Base-TX |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE |
- |
Yes |
- |
Yes |
| Protocol |
Modbus TCP, Modbus UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Yes, Module (0.8 seconds), Communication (Programmable) |
| LED Indicators |
| for System Running |
Yes |
| for Ethernet Link/Act |
Yes |
| for DI/DO status |
- |
Yes |
| for PoE Power |
- |
Yes |
- |
Yes |
| 2 Way Isolation |
| Ethernet |
1500 VDC |
- |
1500 VDC |
- |
| I/O |
2500 VDC |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line Line |
±2 kV for Power Line |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
±2 kV for Power Line |
| Power |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
10 ~ 30 VDC |
12 ~ 48 VDC |
12 ~ 48 VDC |
12 ~ 48 VDC |
| Powered from PoE |
- |
Yes, IEEE 802.3af, Class1 |
- |
Yes, IEEE 802.3af, Class1 |
| Consumption |
2.8 W (Max.) |
3.2 W (Max.) |
4.2 W (Max.) |
4.4 W (Max.) |
| Mechanical |
| Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
76 mm x 120 mm x 38 mm |
| Installation |
DIN-Rail or Wall mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30~ +80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
